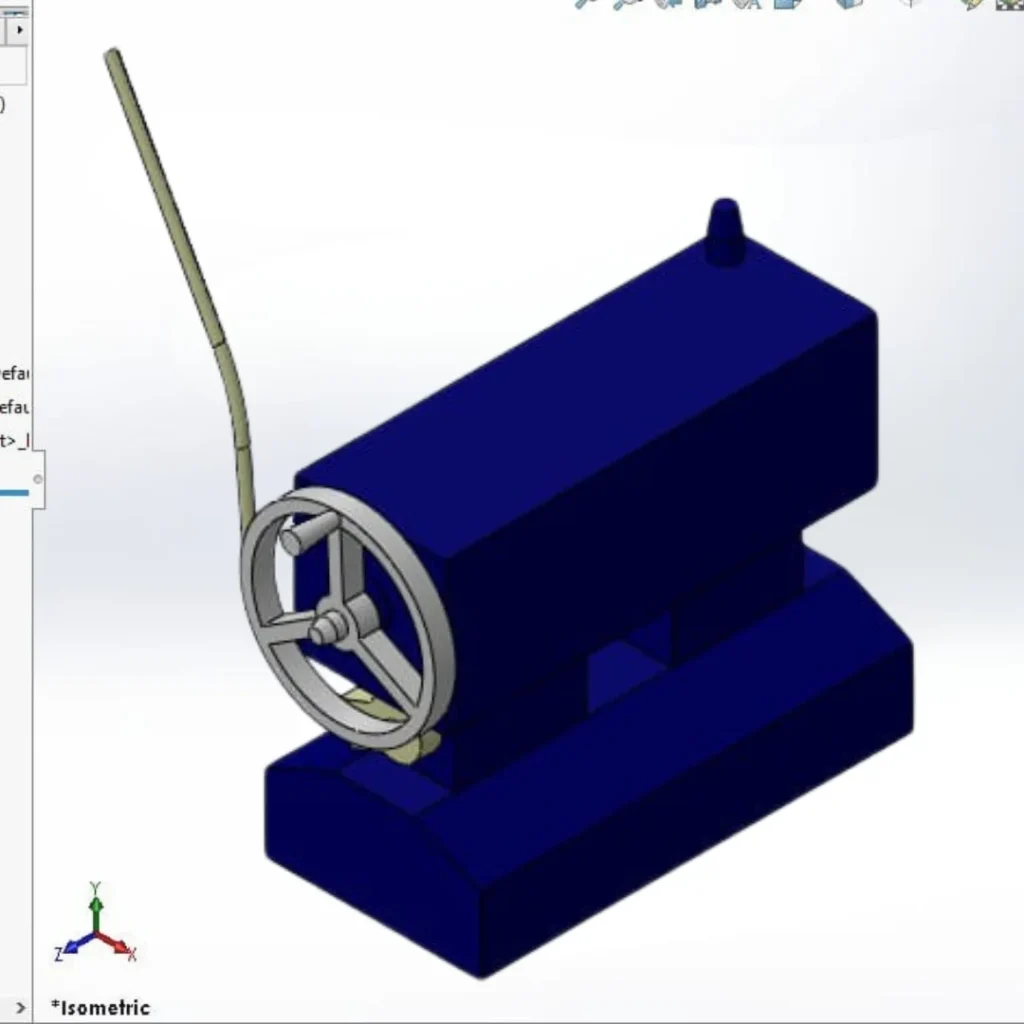

High-Fidelity CAD: Accurate Parametric Modeling for Visualization

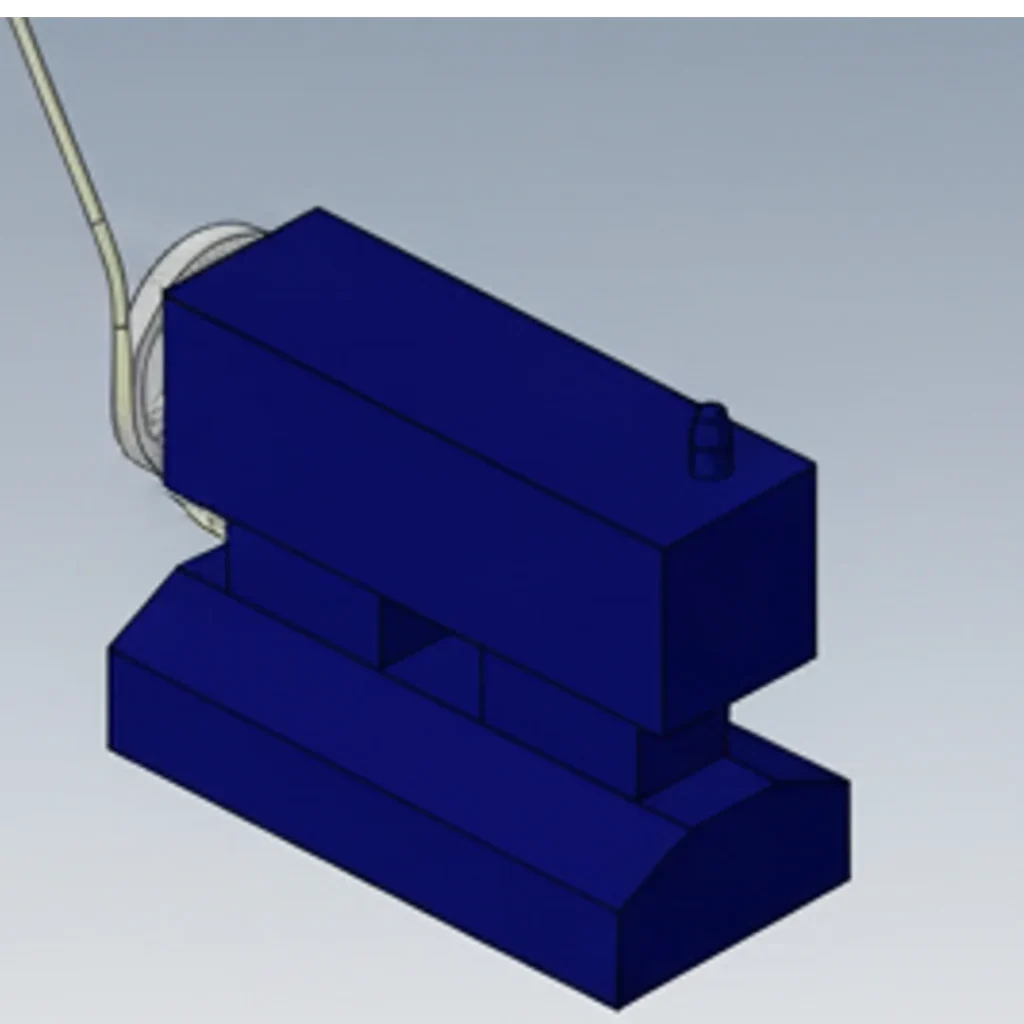

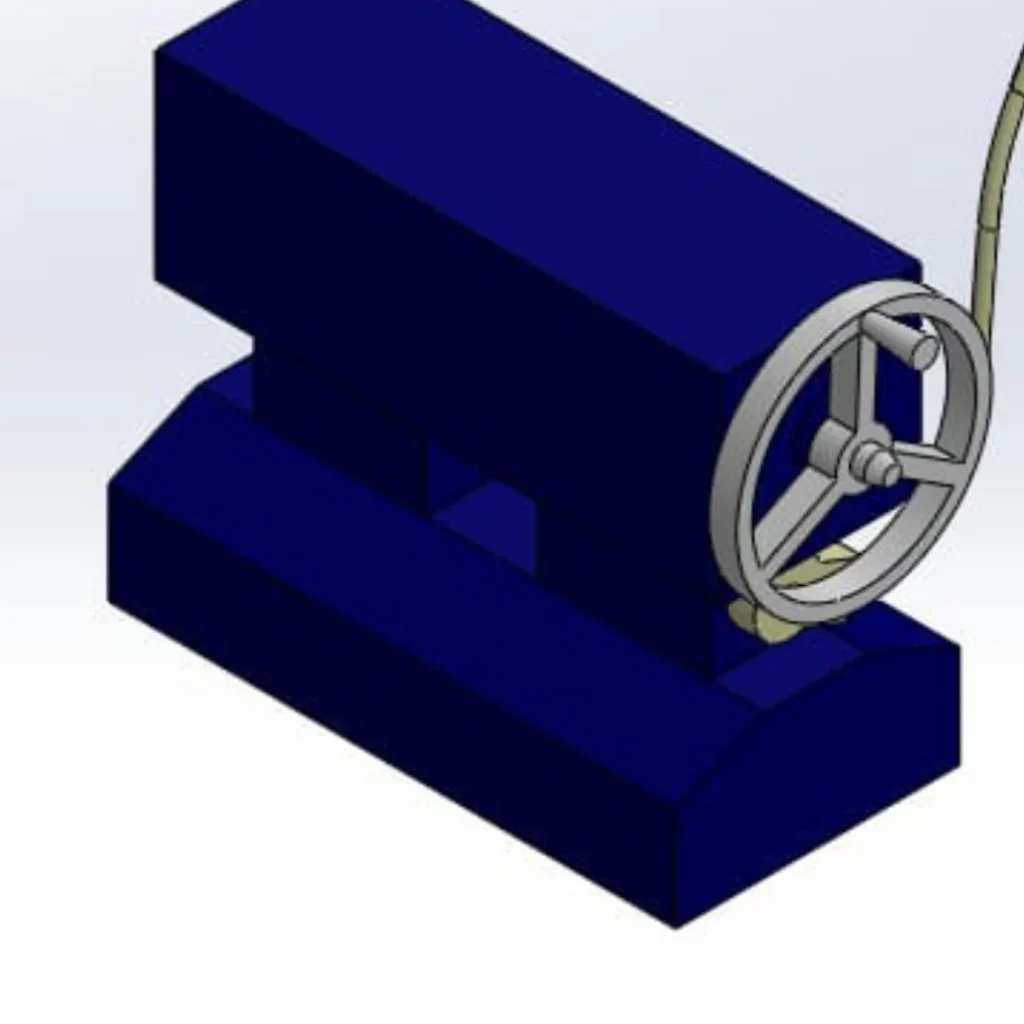

Created clean, detailed 3D CAD models for all five components of the industrial mechanism, using robust construction techniques to ensure geometric integrity. This provided a flawless digital foundation for the entire assembly, optimizing the geometry specifically for archival and rendering purposes, maximizing the visual fidelity of the final asset.

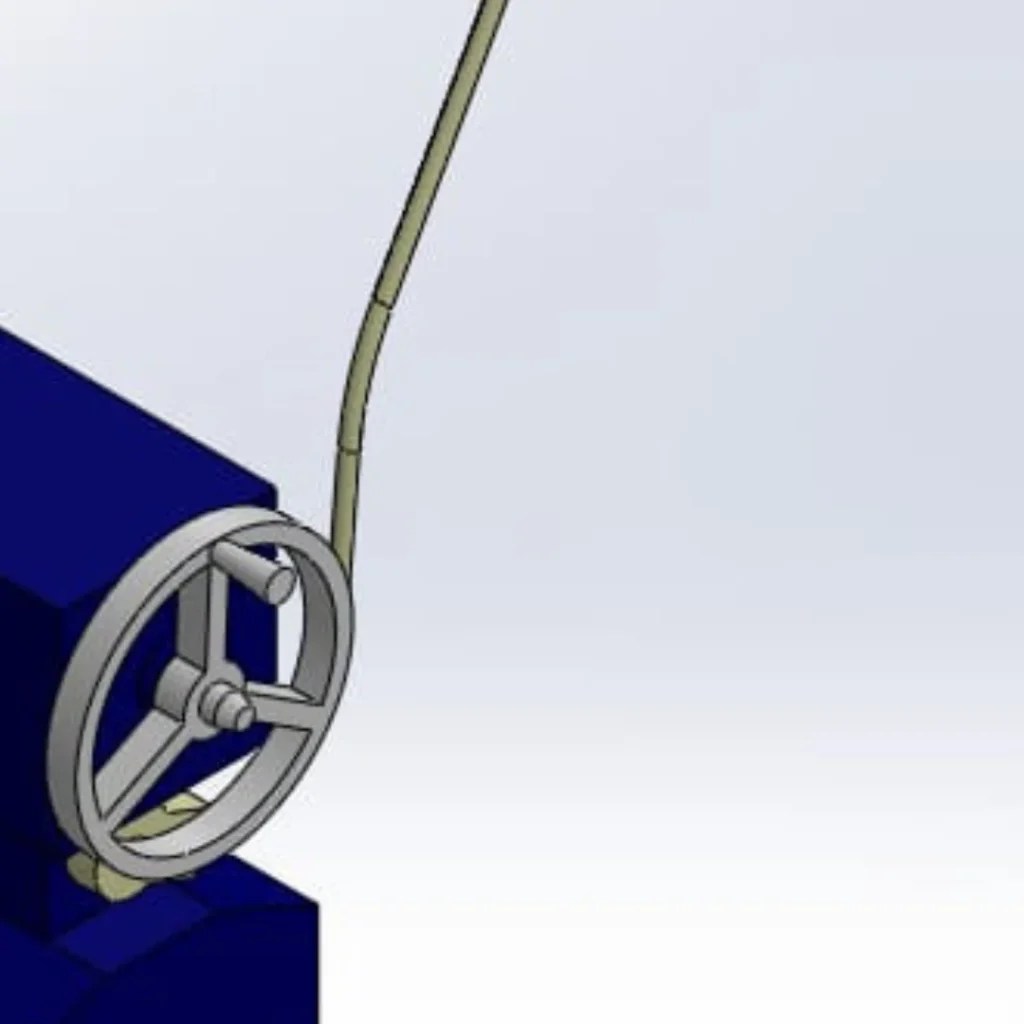

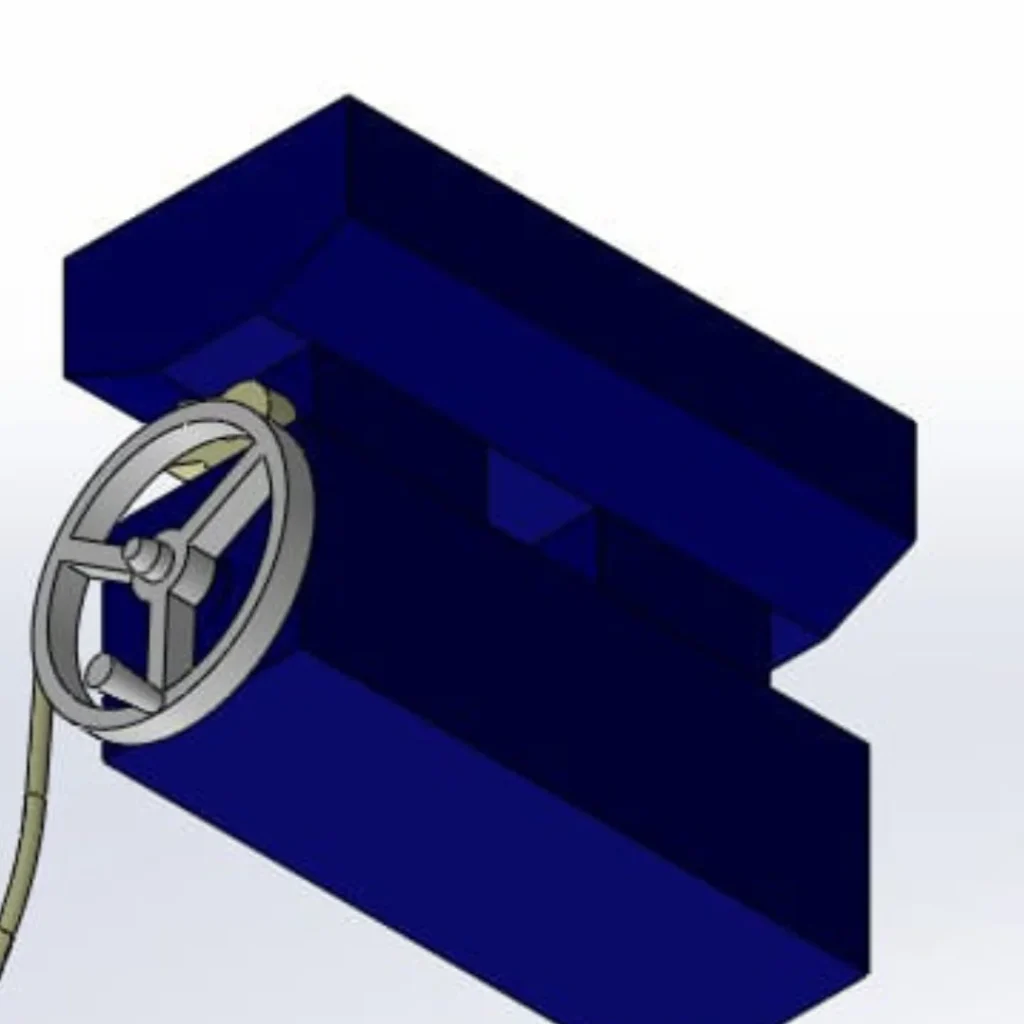

Defined all necessary rotational and axial mates in the SolidWorks assembly environment to precisely verify the mechanical relationship and smooth, intended movement of the components (wheel, handle, and housing). This rigor guarantees the digital mechanism functions correctly within the virtual space, which is essential for detailed internal presentations.

Performed rigorous verification of all critical interface dimensions and clearances, confirming that the digital model met all required geometric accuracy standards. This ensures the final rendered asset is dimensionally trustworthy for technical archives and high-resolution visualization, maintaining the integrity of the original design intent.

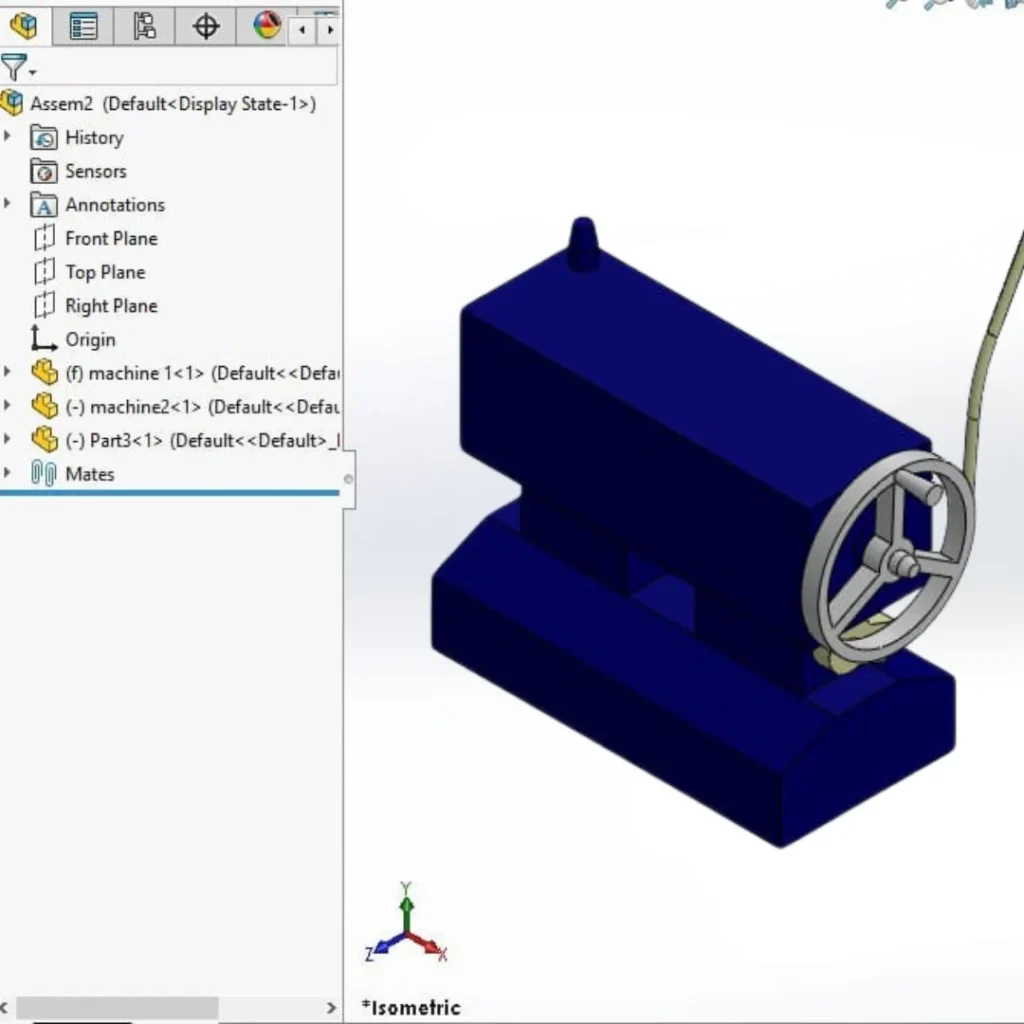

Ensured the entire model history was meticulously cleaned, structured, and fully parametrically linked using robust feature management techniques. This delivers maximum flexibility for the client’s future internal revisions, making the model scalable and easy to modify without destructive errors.

Applied realistic material textures and prepared the model geometry with optimized surfacing for high-fidelity rendering output. This process ensures the final visual asset meets the stringent quality standards required for technical documentation and professional presentation use.

Delivered the native SolidWorks CAD files along with neutral formats (STEP, IGES) optimized for long-term archival and viewing across multiple software platforms. This robust handover provides a secure, flexible, and reliable technical asset for the client’s library.
